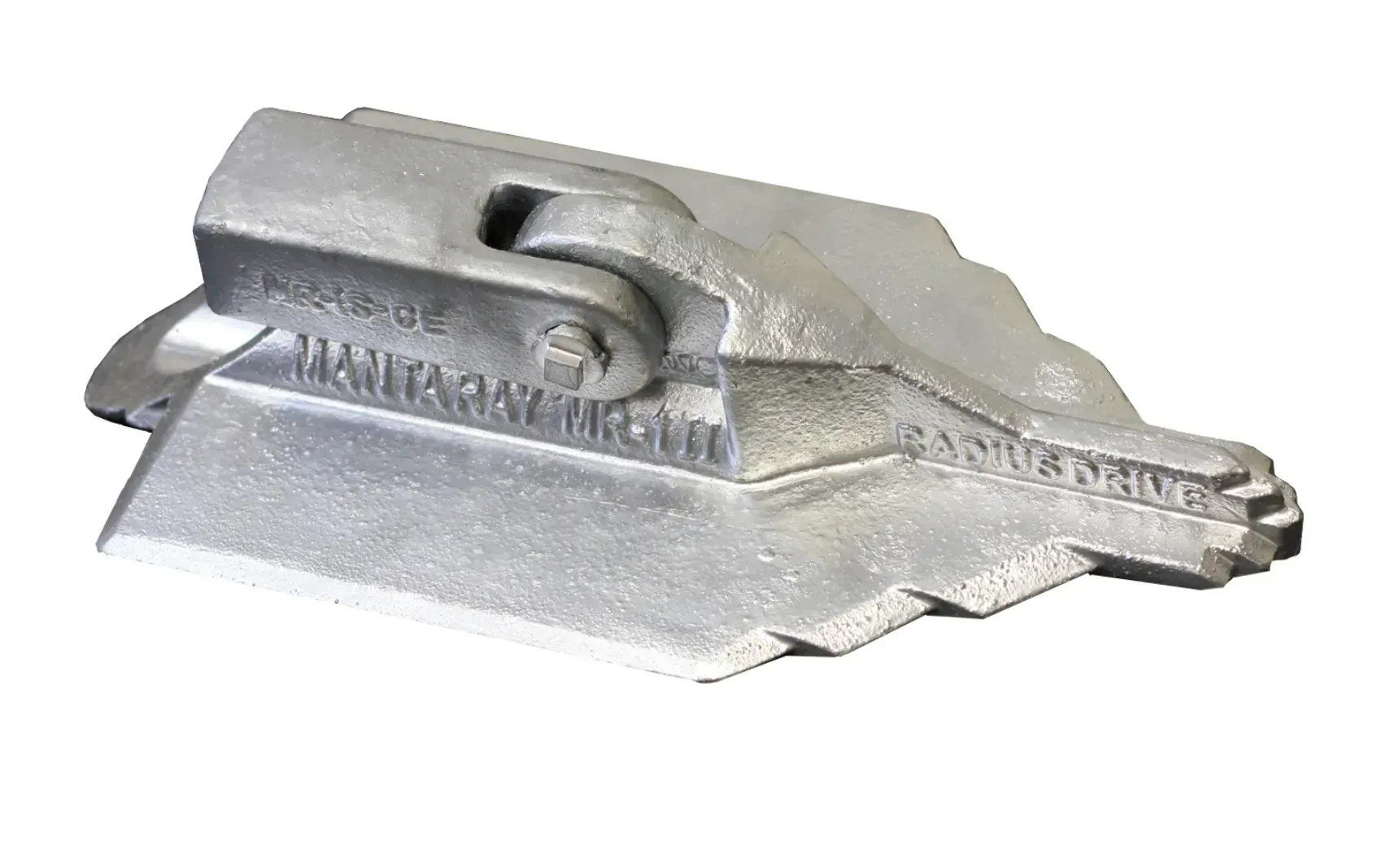

Reliable Earth Anchoring for Portable and Modular Buildings

Ensuring that portable buildings, site sheds, and relocatable modular structures remain safely fixed against wind uplift is a fundamental safety obligation throughout Australia. AncorLoc Earth Systems Australia Mentone provides precision-engineered ground anchor solutions that satisfy Australian wind load and geotechnical requirements — no concrete footings necessary. Built to perform across a wide range of soil profiles, from loose coastal sands through to expansive reactive clays, our anchoring systems are ready for swift deployment wherever your project demands. From mining accommodation villages to emergency response facilities and construction site offices, dependable ground anchoring keeps both your assets and your workforce protected. Selecting the right portable building tie down systems goes well beyond ticking a compliance box — it is about having genuine confidence that your structures will hold firm through whatever conditions the Australian climate throws at them. Our helical and driven earth anchors develop outstanding pull-out resistance, offering engineers and site supervisors verifiable, certifiable holding capacities they can rely on. Installations are completed within hours rather than days, keeping labour costs down and project schedules on track. Head to ancorloc.com.au/portable-buildings to browse our comprehensive anchoring product range and request a quote tailored to your specific site requirements.

📞 Call Now: 610395856808
Reliable Earth Anchoring for Portable and Modular Buildings

Reliable Earth Anchoring for Portable and Modular Buildings

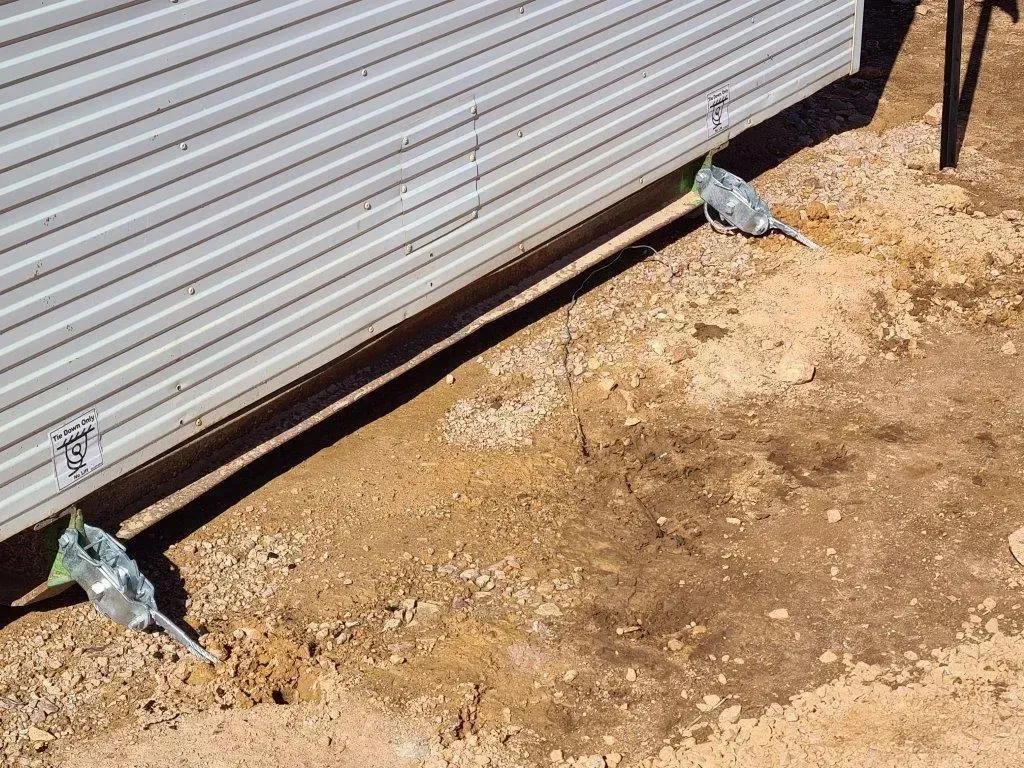

Meeting Cyclone Wind Load Standards Without Concrete

Meeting Cyclone Wind Load Standards Without Concrete

Australian Standards AS 4055 and AS/NZS 1170.2 impose strict wind load obligations on temporary and relocatable structures, especially across cyclone-prone areas of Queensland, Western Australia, and the Northern Territory. AncorLoc earth anchor systems are purpose-engineered to meet these obligations by generating certified pull-out resistance values directly within the existing soil profile. Anchors are driven or torqued to a calculated embedment depth that corresponds to the site's wind region classification, removing any requirement for concrete entirely. This method substantially cuts mobilisation costs, compresses project timelines, and enables full relocation of structures without leaving permanent foundations in the ground — a significant advantage for contractors coordinating several simultaneous site deployments across different locations.

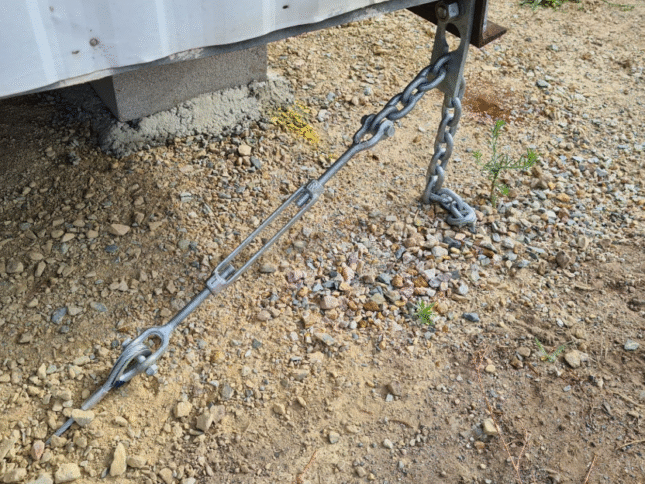

Adapting Anchor Configurations to Varied Australian Soil Types

Adapting Anchor Configurations to Varied Australian Soil Types

The extraordinary geological variety found across Australia — from reactive black clay soils in New South Wales to loose coastal sands in South Australia and fractured rock formations in the Pilbara region — requires anchoring solutions that are genuinely adaptable rather than designed around a single assumed ground condition. AncorLoc supplies a comprehensive selection of helix diameters, lead section configurations, and anchor rod grades chosen specifically to suit the bearing capacity of each soil category. In cohesive clay profiles, larger helix plates distribute applied loads over a broader bearing area. In loose or sandy fill conditions, multi-helix arrangements increase effective embedment depth and build cumulative pull-out resistance across multiple bearing surfaces. Where shallow rock is encountered, driven rod anchors fitted with mechanical expansion heads provide a dependable mechanical lock without the need for drilling. A thorough geotechnical assessment prior to anchor installation ensures that every system achieves its full rated capacity under load.

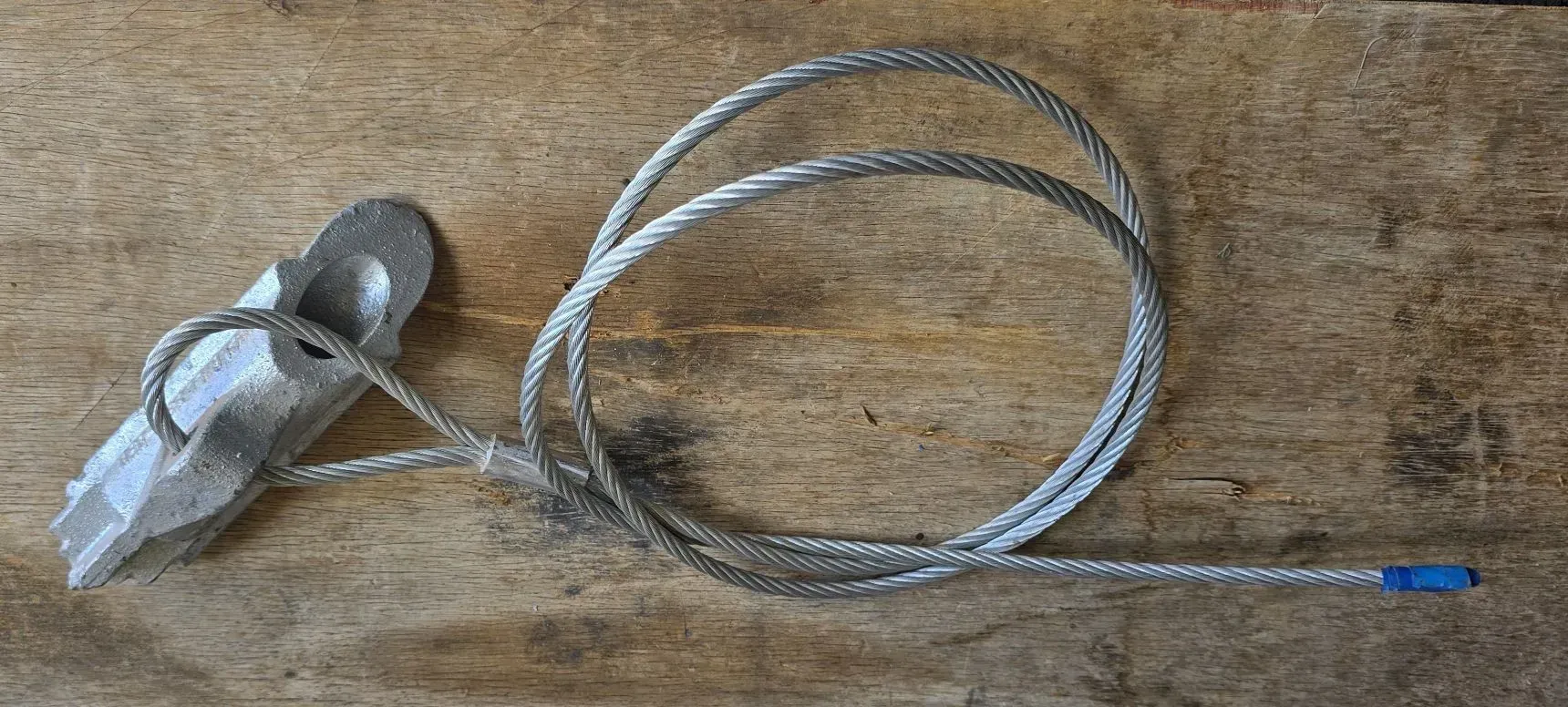

Fast Deployment for Site Sheds and Temporary Accommodation

Fast Deployment for Site Sheds and Temporary Accommodation

Tight construction programs and emergency deployment situations require anchoring solutions that can be installed, proof-tested, and certified within a single working day. AncorLoc's systems are designed precisely for this purpose, utilising compact installation equipment that can be transported on a standard utility vehicle or small excavator. A competent crew is capable of fully anchoring a portable building or modular accommodation unit within one shift, with the installation torque of each anchor recorded in real time as direct evidence of achieved holding capacity. This torque-to-capacity relationship eliminates the delay associated with concrete curing, preserving project momentum at every stage. The systems are equally effective across permanent site sheds, temporary educational facilities, mine-site accommodation, and disaster-response buildings — wherever speed and structural reliability must be delivered together.

Frequently Asked Questions

Earth anchors can be installed within hours, achieve certified holding capacity with no curing period required, leave zero permanent footprint on the ground, and allow full relocation of structures at any time. For portable buildings and site sheds that are regularly moved or temporarily deployed, this approach is significantly more cost-effective and operationally flexible than using concrete footings.

Yes. AncorLoc anchor systems are engineered to satisfy the requirements of AS 4055 and AS/NZS 1170.2. Pull-out resistance values are calculated to match each specific wind region classification, ensuring that modular buildings and portable structures stay securely anchored even in cyclone-designated zones across Australia.

Absolutely. Multi-helix anchor configurations are specifically chosen for cohesionless or loose soil profiles, extending effective embedment depth and distributing applied loads across several bearing plates simultaneously. This approach delivers reliable pull-out resistance even in situations where a single shallow-helix anchor would be unable to achieve the required load ratings.

A basic geotechnical assessment — which may include soil borings, hand auger tests, or existing site investigation reports — provides the information needed to guide anchor selection. The team behind Mentone portable building tie down systems services can review your soil data and recommend the appropriate helix diameter, embedment depth, and anchor configuration for your specific site.

A trained installation crew can typically complete the full anchoring of a portable building or modular structure within a single working day. Installation torque is logged in real time as documented proof of holding capacity, meaning there is no waiting period before the building is ready to be loaded and occupied.
